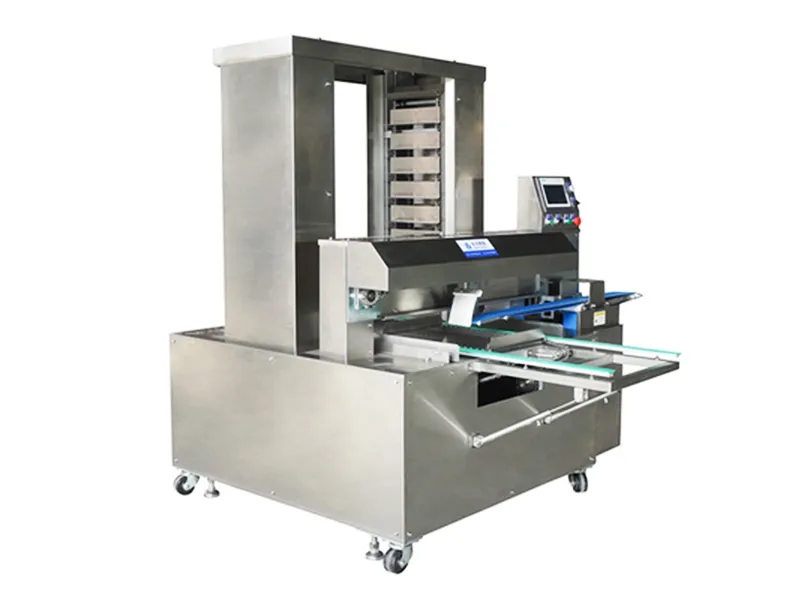

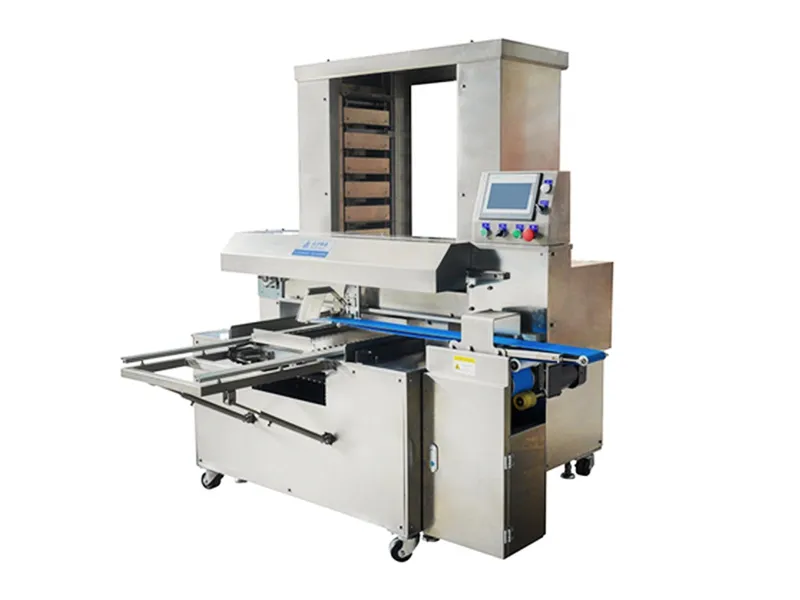

Compact Panner with Tray Feeder, Tray Aligning Machine
Accurate tray loading is key to keeping production organized. This compact panner with tray feeder ensures consistent placement and spacing, helping maintain a smooth flow into baking and downstream processes. It supports flexible layout patterns and adapts to different production requirements with stable, automated operation.
- Capacity: 1000-13000pcs/hour
- Machine dimensions: 1550×1820×1680mm
- Power: 2.5kW
- Voltage: 220V/380V
- Machine weight: 465kg
- Dough sheet width: 100mm (customizable)
Features
- PLC control system with up to 99 programmable settings
- Supports parallel and staggered (interleaved) arrangement patterns
- Automatically calculates and adjusts product layout and quantity
- Servo-driven positioning system ensures precise product placement
- Supports double-row and triple-row arrangement based on production needs
- Equipped with alarm and buzzer function for operational safety
